| >>>>Welding accessory |
 |
|

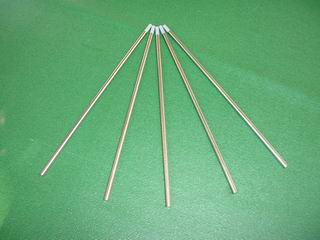

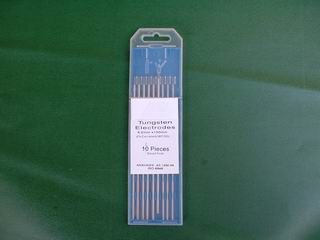

| All kinds of Tungsten electrodes for TIG
welding |
|
| |
|
We normally produce three types of tungsten electrode
1. Normal type: Diameter from 0.4mm to 12.0mm,
2. Straightened type: Diameter from 0.8mm to 4.0mm,
3. Ground or polished surface type : Diameter from 0.8mm to
13.0mm. |
| |
| Type |
additive % |
Oxide Color code |
Standard |
| WP |
|
Green |
ISO6848 |
| WT10 |
0.90-1.20 ThO2 |
Yellow |
| WT20 |
1.80-2.20 ThO2 |
Red |
| WT30 |
2.80-3.20 ThO2 |
Purple |
| WT40 |
3.80-4.20 ThO2 |
Orange |
| WZ8 |
0.70-0.90 ZrO2 |
White |
| WL10 |
0.90-1.20 LaO3 |
Black |
| Wce20 |
1.80-2.20 CeO2 |
Grey |
| WL20 |
1.80-2.20 LaO3 |
Blue |
|
| |
| Diameter
|
Tolerance
|
Diameter
|
Tolerance
|
Diameter
|
Tolerance
|
Length
|
| 0.5mm
|
±0.05
|
3.0mm
|
±0.1
|
6.0mm
|
±0.1
|
50.0mm
75.0mm
150.0mm
175.0mm
178.0mm
|
| 1.0mm
|
±0.05
|
3.2mm
|
±0.1
|
6.4mm
|
±0.1
|
| 1.6mm
|
±0.05
|
4.0mm
|
±0.1
|
8.0mm
|
±0.1
|
| 2.0mm
|
±0.05
|
4.8mm
|
±0.1
|
10.0mm
|
±0.1
|
| 2.4mm
|
±0.05
|
5.0mm
|
±0.1
|
12.0mm
|
±0.1
|
|
Characteristic of our Tungsten electrodes:
1. Easy arc starting performance and low arc keeping current.
2. Better performance of arc stability and long lifetime during
the usage.
3. No drop broken bit and splash during welding. |
|
|
 |

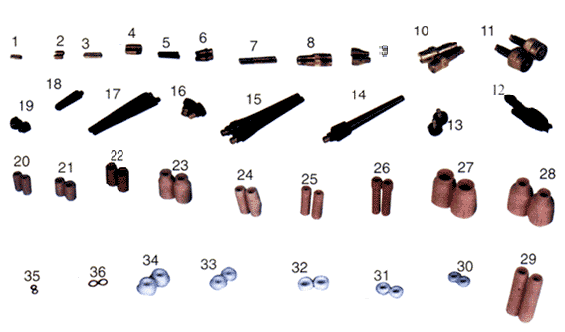

| >>>>Other
parts related to TIG welding torch
|
1. 53N14-16
|
Collet(0.5-1.6) |
18. 41V35 |
Med back cap
|
2. 53N17-719
|
Collet body(0.5-1.6)
|
19. 41V33
|
Short back cap
|
| 3. 13N21-24 |
Collet(0.5-3.2) |
20. 13N08-13
|
4#-10# ceramic nozzle
|
4. 13N25-29
|
Collet body(0.5-3.2)
|
21. 53W58-61S
|
4#-8# ceramic nozzle
|
5. 10N(S)
|
Collet
|
22. 14N57-61
|
4#-12# ceramic nozzle
|
6. 10N(S)
|
Collet body
|
23. 54N14-19
|
4#-10# ceramic nozzle
|
7. 10N20-25
|
Collet(0.5-4.0)
|
24. 10N44-50
|
4#-12# ceramic nozzle
|
8. 10N28-32
|
Collet body(0.5-3.2)
|
25. 796F70-73
|
3#-6# ceramic(48mm) nozzle
|
406488
|
Collet body 4.0
|
26. 796F74-77
|
3#-6# ceramic(63mm) nozzle
|
9. 45V41-43
|
Samll gas lens(0.5-1.6)
|
27. 57N87-88
|
10#-12# ceramic nozzle
|
10. 45V24-29
|
Med gas lens(0.5-3.2)
|
28. 57N87-88
|
6#-8# ceramic nozzle
|
11. 45V0204
|
Big gas lens 0.5/1.0
|
29. 57N74-77
|
5#-7# ceramic(76mm) nozzle
|
45V116
|
Big gas lens 1.6
|
30. 53N22
|
Lower cover
|
45V64
|
Big gas lens 2.4
|
31. 112.05.010
|
Upper cover
|
995795
|
Big gas lens 3.2
|
32. 18CG
|
Lower cover
|
12. K-01
|
K-01 switch
|
33. 54N01
|
Union
|
13. VS-2
|
Valve rod
|
34. 54N63
|
Big union
|
14. 57Y02
|
Long back cap
|
35. 98W77
|
“Ｏ”Ring
|
16. 57Y04
|
Short back cap
|
36. 98W18
|
“Ｏ”Ring
|
17. 41V24
|
Long back cap
|
|
|
|
| |
