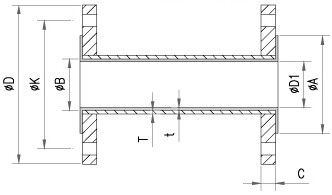

PTFE Lined Pipe

PTFE lined pipe fittings

  • Nominal Diameter (mm/in.): DN15-DN600 (NPS 1/2-NPS 24)
  • Operating temperature:  -20-180
  • Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
  • Pipe: Seamless steel.

Flange: ASME B16.5 Class 150   Flange options: HG, GB, JB, JIS, BS, DIN ,ANSI ,ASTM


Special pieces of specific or non standard size can be manufactured on request.

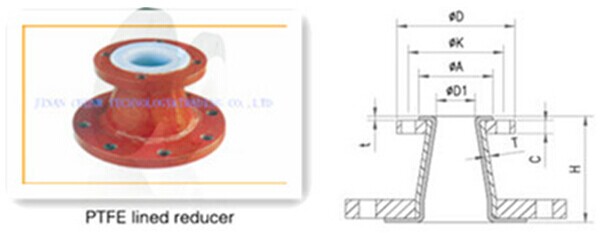

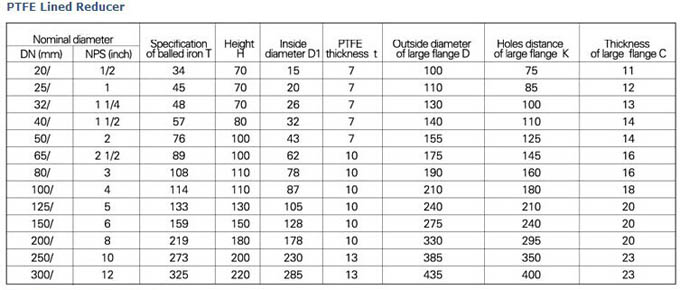

PTFE lined Reducer >>

Operating instruction of PTFE lined pipe (according to HG/T21562)

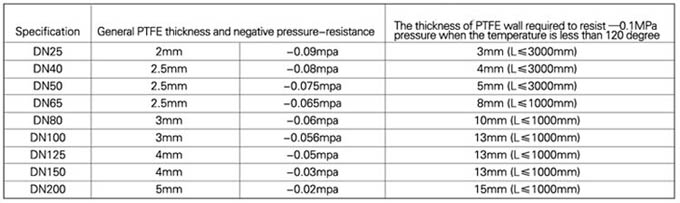

1. Positive pressure: It shall adopt steel components according to different technical requirements, and the thickness of PTFE wall shall be over 2mm. If the temperature is less than 100 degree, the production length shall be less than 6m; and if the temperature exceeds 100 degree, the length shall be less than 3m.

2. Negative pressure: Design according to different ambient conditions of the users.

  • Nominal Diameter (mm/in.): DN15-DN600 (NPS 1/2- NPS 24)
  • Operating temperature:  -20-180
  • Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
  • Pipe: Seamless steel.

Flange: ASME B16.5 Class 150   Flange options: HG, GB, JB, JIS, BS, DIN ,ANSI ,ASTM

Special pieces of specific or non standard size can be manufactured on request.

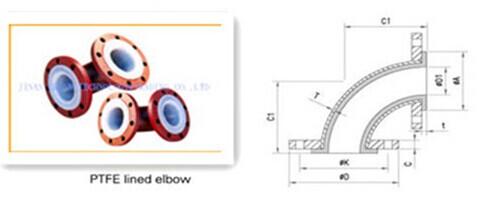

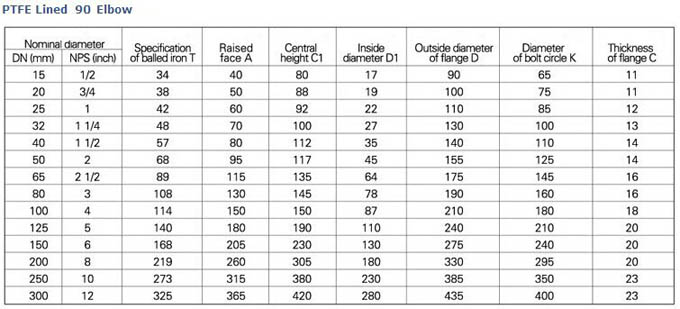

PTFE Lined Elbow
  • Nominal Diameter (mm/in.): DN15-DN600 (NPS 1/2- NPS 24)
  • Operating temperature:  -20-180
  • Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
  • Pipe: Seamless steel.

Flange: ASME B16.5 Class 150   Flange options: HG, GB, JB, JIS, BS, DIN ,ANSI ,ASTM

Special pieces of specific or non standard size can be manufactured on request.

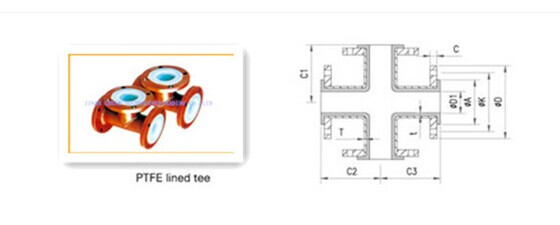

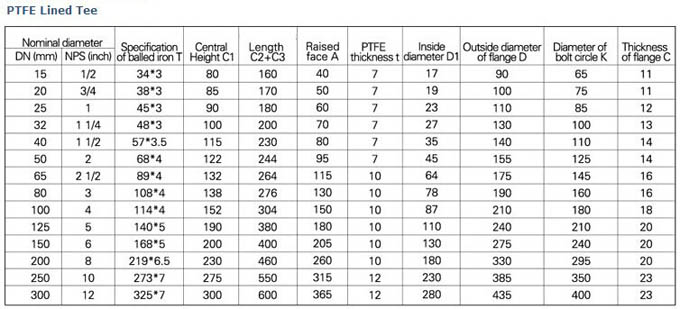

PTFE Lined Tee

  • Nominal Diameter (mm/in.): DN15-DN600 (NPS 1/2- NPS 24)
  • Operating temperature:  -20-180
  • Operating pressure: -0.09MPa-1.6MPa (-0.9bar-16bar)
  • Pipe: Seamless steel.

Flange: ASME B16.5 Class 150   Flange options: HG, GB, JB, JIS, BS, DIN ,ANSI ,ASTM

Special pieces of specific or non standard size can be manufactured on request.

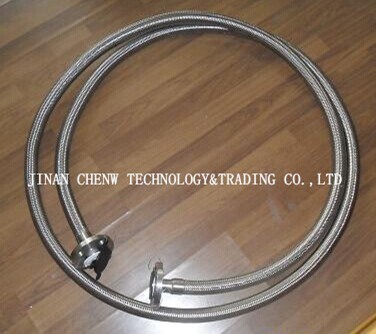

Teflon lined with SS304 Braided
With reinforced rib net set of bellows With reinforced rib net set of bellows, reinforced rib is set on the F4 corrugated concave, high negative pressure.
Corrugated pipe connecting a variety of ways. The general availability of flange connection, oil connection, threaded connection, quick joint, and directly connected with a pipe, fixed by the clip or metal wire. No DN4-32mm wave net F4 withhold hose can be produced, our factory can also provide connection mode corresponding to the user's requirements. According to the characteristics of
1 user requirements and joint reasonable selection of fast joint model. (including the work pressure, the connection form of material properties and flow, temperature, corrosive and environmental temperature, and the number of lines etc.)
2 if you need will be connected with the direct and rigid pipe welding should pay attention to the following points: (1) will be inserted inside the rubber sealing ring with special tool to remove the hook, the welded joint is completely cooled, the sealing ring is arranged in the sleeve. (2) if there is no special hook, also can use a damp cloth or cotton yarn with the sleeve inner diameter of the seal ring, to prevent damage to the sealing performance of high temperature welding. (3) the fast not be placed on metal plate and other conductive body, so as to avoid internal short circuit current burned out, affecting sealing performance and fit precision. 3 ball type joint spherical (male connector) and cone (female connector) in the use and transportation should be pay attention to the protection, not to scratch or collision, so as not to affect the connected sealing.

? 4 the correct choice of a quick joint type and reasonable installation, are the two important factors in service life.

Size of Teflon lined hollow bar stock

O.D.I.D.L
(mm)

O.D.I.D.L
(mm)

O.D.I.D.L
(mm)

O.D.I.D.L
(mm)

15/1040

71/5590

115/65100

170/100100

30/1970

75/42150

115/75100

172/13550

36/2450

77/55100

117/80110

172/145115

40/18100

79/6580

120/9870

187/15970

40/20100

83/30100

122/10260

205/16290

42/25100

83/60100

125/60100

213/189100

48/36100

84/5370

125/8085

220/17040

49/3950

64/60100

127/86100

229/18570

50/28100

90/68100

129/11262

250/214100

57/4050

93/60100

135/9265

284/25095

60/3050

93/65100

140/100100

290/240120

64/3050

100/60100

141/112100

304/36450

66/4550

100/65100

142/112100

325/285100

66/5150

100/75100

148/118100

390/354120

66/5550

100/8450

150/110100

395/35550

68/4260

102/65100

160/13065

516/46880

69/42100

107/65100

162/126100

578/53090

70/4550

110/5070

164/13762





110/65125

164/12460
