| >>>>Chemical random packing&filler |
| |
Ceramic bulk filler
The ceramic bulk packing has excellent heat resistance, various inorganic competence except hydrofluoric acid other than acid, organic acid and organic solvent corrosion, can be in a variety of high temperature, low temperature applications use, wide application range, can be used in chemical industry, metallurgy, coal gas, oxygen and other industry drying tower, absorption tower, cooling tower, the regeneration tower. |
 |
Ceramic Raschig ring filler |
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é6 |
6x6x2 |
489 |
0.73 |
3110000 |
650 |
2030 |
¡é10 |
10x10x2 |
360 |
0.7 |
720000 |
600 |
1280 |
¡é15 |
15x15x2 |
250 |
0.7 |
250000 |
550 |
960 |
¡é25 |
25x25x2.5 |
147 |
0.78 |
49000 |
500 |
310 |
¡é50 |
50X50X4.5 |
80 |
0.81 |
5600 |
460 |
156 |
|
 |
Ceramic cascade ring filler |
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é25 |
25x20x3 |
270 |
0.74 |
74000 |
600 |
172 |
¡é50 |
50x30x5 |
108.8 |
0.787 |
9100 |
550 |
223 |
¡é76 |
76x45x7 |
68.4 |
0.79 |
2517 |
500 |
126 |
|
 |
Ceramic pall ring filler |
|
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é25 |
25x25x3.0 |
238 |
0.73 |
49000 |
480 |
565 |
¡é38 |
38x38x4 |
197 |
0.75 |
13400 |
500 |
365 |
¡é50 |
50x50x5 |
120 |
0.78 |
6800 |
460 |
252 |
¡é80 |
80x80x8 |
75 |
0.8 |
1930 |
450 |
146 |
|
 |
Ceramic different saddle ring filler |
|
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é25 |
25x25x3 |
175 |
0.78 |
74000 |
550 |
350 |
¡é38 |
38x38x4 |
118 |
0.80 |
13950 |
510 |
230 |
¡é50 |
50x50x5 |
72 |
0.80 |
6806 |
490 |
140 |
|
 |
Ceramic conjugate ring filler |
|
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é25 |
25x25x3 |
175 |
0.78 |
74000 |
550 |
350 |
¡é38 |
38x38x4 |
118 |
0.80 |
13950 |
510 |
230 |
¡é50 |
50x50x5 |
72 |
0.80 |
6806 |
490 |
140 |
|
 |
Ceramic saddle ring filler |
|
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¡é16 |
16x12x3 |
376 |
0.71 |
26990 |
530 |
1055 |
¡é25 |
40x20x2 |
200 |
0.77 |
58230 |
500 |
434 |
¡é38 |
60x30x4 |
138 |
0.80 |
19680 |
460 |
252 |
¡é50 |
80x42x6 |
115 |
0.79 |
8246 |
500 |
213 |
¡é76 |
119x53x9 |
86 |
0.75 |
2400 |
490 |
179.4 |
|
 |
Ceramic cross ring filler |
|
Size |
DIAxHxTH
mm |
specific area
m2/m3 |
void volume
m2/m3 |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Stem packing factor
m-1 |
¦µ50 |
50¡Á50¡Á5 |
135 |
50 |
5600 |
500 |
1080 |
¦µ80 |
80¡Á80¡Á8 |
120 |
53 |
2100-2500 |
750 |
806 |
¦µ100 |
100¡Á100¡Á10 |
110 |
56 |
900-1000 |
730 |
626 |
¦µ150 |
150¡Á150¡Á15 |
60 |
58 |
270-300 |
650 |
308 |
|
Metal Bulk Filler
Metal Bulk tower filler is made of carbon steel, stainless steel, copper and aluminum and other materials of tower packing. It has a thin wall, heat resistance, large gap, large flux, little resistance, good separation efficiency, especially suitable for vacuum distillation tower, temperature, easy decomposition, easily polymerized, carbon materials. Metal packing: conjugate ring, eight four ring, the inner arc flat ring, ladder ring, Bao Erhuan, saddle ring, double arc ring etc.. |
 |
Metal Raschig ring filler |
|
Size |
DIA¢ªH¢ªTH
mm |
Number
n/m3 |
Specific area
m2/m3 |
Accumulation of weight
kg/m3 |
Void volume
m2/m3 |
Stem filler factor
m-1 |
§æ15 |
15¡Á15¡Á0.5 |
248000 |
350 |
580 |
0.92 |
460 |
§æ25 |
25¡Á25¡Á0.8 |
55900 |
220 |
340 |
0.92 |
290 |
§æ35 |
35¡Á35¡Á1.0 |
19000 |
150 |
490 |
0.93 |
190 |
§æ50 |
50¡Á50¡Á1.0 |
6500 |
110 |
310 |
0.95 |
130 |
|
 |
Metal Pall ring filler |
|
Size |
DIA¢ªH¢ªTH
mm |
Number
n/m3 |
Specific area
m2/m3 |
Accumulation of weight
kg/m3 |
Void volume
m2/m3 |
Stem filler factor
m-1 |
§æ16 |
16¢ª16¢ª0.5 |
192500 |
239 |
380 |
0.928 |
299 |
§æ25 |
25¢ª25¢ª0.5 |
49000 |
219 |
300 |
0.934 |
269 |
§æ38 |
38¢ª38¢ª0.7 |
13400 |
176 |
260 |
0.945 |
253 |
§æ50 |
50¢ª50¢ª0.8 |
6800 |
134 |
200 |
0.949 |
131 |
§æ76 |
76¢ª76¢ª1 |
1980 |
96 |
190 |
0.96 |
72 |
|
 |
Metal saddle ring filler |
|
Size |
DIA¢ªH¢ªTH
mm |
Number
n/m3 |
Specific area
m2/m3 |
Accumulation of weight
kg/m3 |
Void volume
m2/m3 |
Stem filler factor
m-1 |
§æ25 |
25¢ª20¢ª0.5 |
119047 |
185 |
303 |
0.96 |
209.1 |
§æ38 |
38¢ª24¢ª0.5 |
31654 |
140.4 |
195 |
0.968 |
126.6 |
§æ50 |
50¢ª28¢ª0.8 |
11160 |
90.1 |
185 |
0.97 |
84.7 |
§æ76 |
76¢ª48¢ª1 |
3320 |
57.6 |
190 |
0.97 |
63.1 |
|
 |
Metal conjugate ring filler |
|
Size |
DIA¢ªH¢ªTH
mm |
Number
n/m3 |
Specific area
m2/m3 |
Accumulation of weight
kg/m3 |
Void volume
m2/m3 |
Stem filler factor
m-1 |
§æ16 |
¡¡ 23¢ª16¢ª0.4 |
211250 |
311 |
280 |
0.97 |
324 |
§æ25 |
¡¡ 25¢ª25¢ª0.5 |
74985 |
181 |
290 |
0.96 |
193 |
§æ38 |
¡¡ 38¢ª38¢ª0.7 |
19432 |
108 |
270 |
0.97 |
119 |
§æ50 |
¡¡50¢ª50¢ª0.8 |
9738 |
83 |
200 |
0.96 |
97 |
§æ76 |
76¢ª76¢ª1 |
3980 |
80 |
195 |
0.95 |
94.5 |
|
Plastic Bluk filler
Plastic bluk filler is made of corrosion-resistant materials include polyethylene (PE), polypropylene (PP), reinforced polypropylene (RPP), polyvinyl chloride (PVC), chlorinated polyvinyl chloride (CPVC), and polytetrafluoroethylene (PVDF) materials, which has large void ratio, low pressure drop, vapor liquid full contact, the proportion of light, the mass transfer efficiency etc.. Using the temperature of 60-150 ¡æ. Widely used in petroleum, chemical, chlor alkali, gas, environmental protection and other industries. |
 |
Plastic pall ring filler |
|
Size |
DIA¡ÁH¡ÁTH
mm |
Number
n/m3 |
Accumulation of weight
kg/m3 |
Specific area
m2/m3 |
Void volume m2/m3 |
Stem filler factor
m-1 |
§æ 16 |
16¡Á16¡Á1.1 |
241250 |
85 |
339 |
0.91 |
249 |
§æ 25 |
25¡Á25¡Á1.2 |
49000 |
90 |
221 |
0.901 |
239 |
§æ 38 |
38¡Á38¡Á1.4 |
13400 |
78 |
182 |
0.89 |
220 |
§æ 50 |
50¡Á50¡Á1.5 |
6800 |
69 |
139 |
0.90 |
127 |
§æ 76 |
76¡Á76¡Á2.6 |
1980 |
70 |
101 |
0.92 |
94 |
|
| |
 |
Plastic Rosette filler |
|
Size |
DIA¡ÁH¡ÁTh
mm |
Number
n/m3 |
Accumulation of weight
Kg/m3 |
Specific area
m2/m3 |
Void volume m2/m3 |
§æ 25 |
25¡Á9¡Á9(1.5¡Á2) |
170000 |
90 |
269 |
0.82 |
§æ 51 |
51¡Á19¡Á(3¡Á3) |
23500 |
70 |
197 |
0.98 |
§æ 73 |
73¡Á28¡Á(3¡Á4) |
8000 |
90 |
168 |
0.89 |
§æ 95 |
95¡Á37¡Á(3¡Á6) |
3900 |
100 |
142 |
0.90 |
§æ 145 |
145¡Á48¡Á(3¡Á6) |
1100 |
75 |
118 |
0.95 |
|
| |
 |

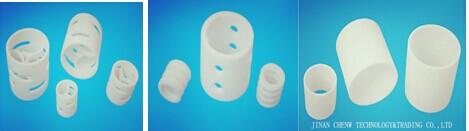

PTFE filler |
|
Size |
Accumulation of weight
Kg/m3 |
Number
n/m3 |
Specific area
m2/m3 |
Void volume
M2/m3 |
¦Õ20*2*20 |
550 |
125000 |
267 |
0£®928 |
¦Õ25*2*25 |
450 |
60000 |
219 |
0£®934 |
¦Õ29*2*29 |
400 |
35000 |
193 |
0£®936 |
¦Õ38*2.5*38 |
370 |
15800 |
148 |
0£®94 |
¦Õ40*2*40 |
350 |
15100 |
138 |
0£®942 |
¦Õ42*3*42 |
550 |
14500 |
132 |
0£®943 |
¦Õ50*2*50 |
250 |
6800 |
108 |
0£®945 |
¦Õ50*3*50 |
350 |
6800 |
108 |
0£®945 |
¦Õ50*4*50 |
450 |
6800 |
108 |
0£®945 |
¦Õ50*5*50 |
580 |
6800 |
108 |
0£®945 |
¦Õ65*3*65 |
300 |
4600 |
84 |
0£®948 |
¦Õ65*5*65 |
500 |
4600 |
84 |
0£®948 |
¦Õ76*4*76 |
460 |
3000 |
72 |
0£®95 |
|
